Jebao Jecord Marine DC return Pump Submersible Fish Pump Aquarium for Fresh Marine, DCS1200 DCS2000 DCS 3000 DCS4000 DCS7000 DCS9000 DCS12000
New Jebao Jecord DCS1200 DCS2000 DCS 3000 DCS4000 DCS5000 DCS7000 DCS12000 Marine DC return Pump for fresh and marine water Aquarium submersible Pump
Features:
ATTENTIONS: ALL outlet parts of each pump are updated on July 2024, please refer to the new outlets' pictures.

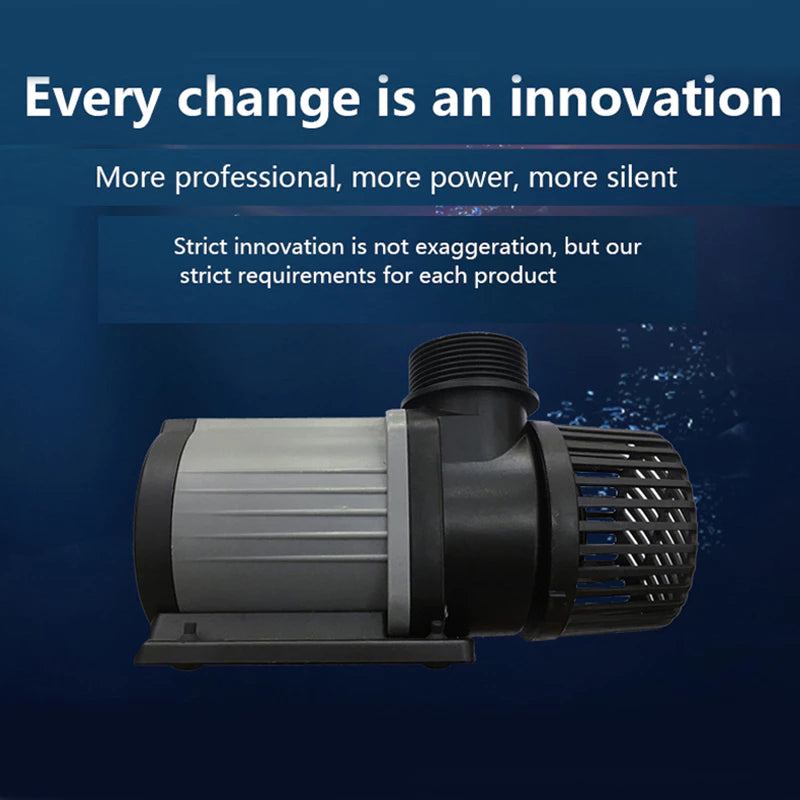

The newest Jecord DCS Series
The new DCS series is an adjustable DC return submersible water pump.
Quieter and energy-saving than the older DC series pumps.

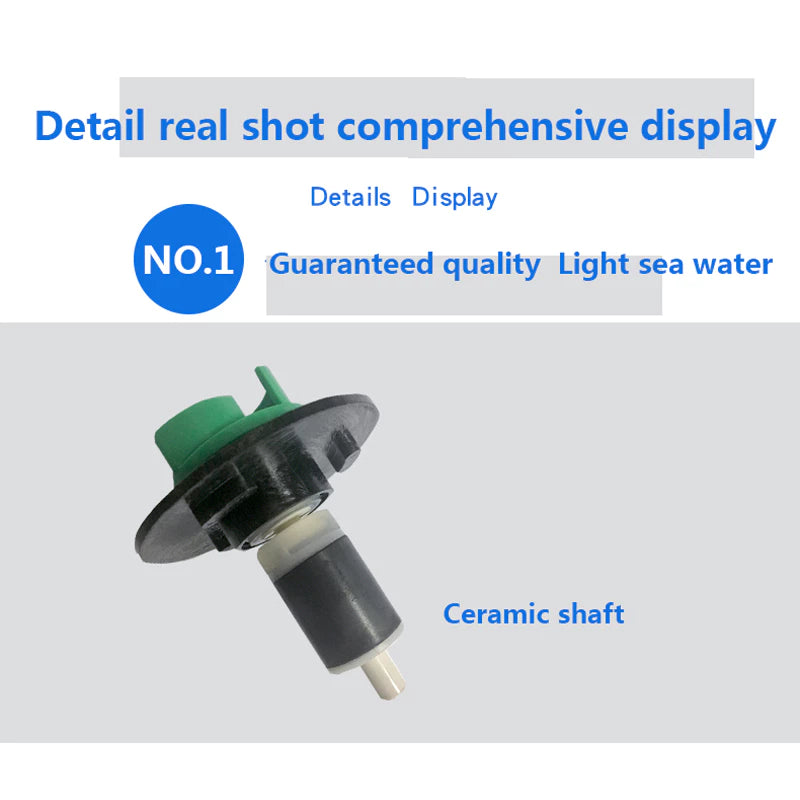

With a wear-resistant ceramic shaft, it has a longer operation life.

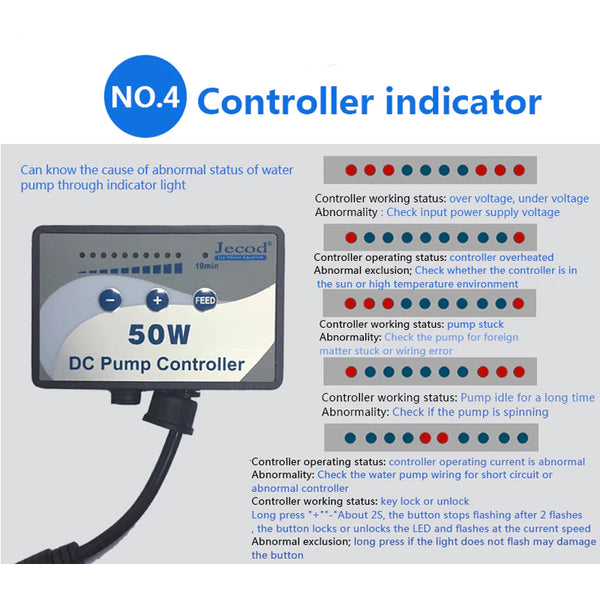

IC electronic detection and automatic power-off protection are available when there is no water.
Motor protection if the rotor is blocked.
Ultra silence and 50% power saving.
Suitable to use in Marine and Fresh Water 100%.
Copper components are free and safe for any tank.

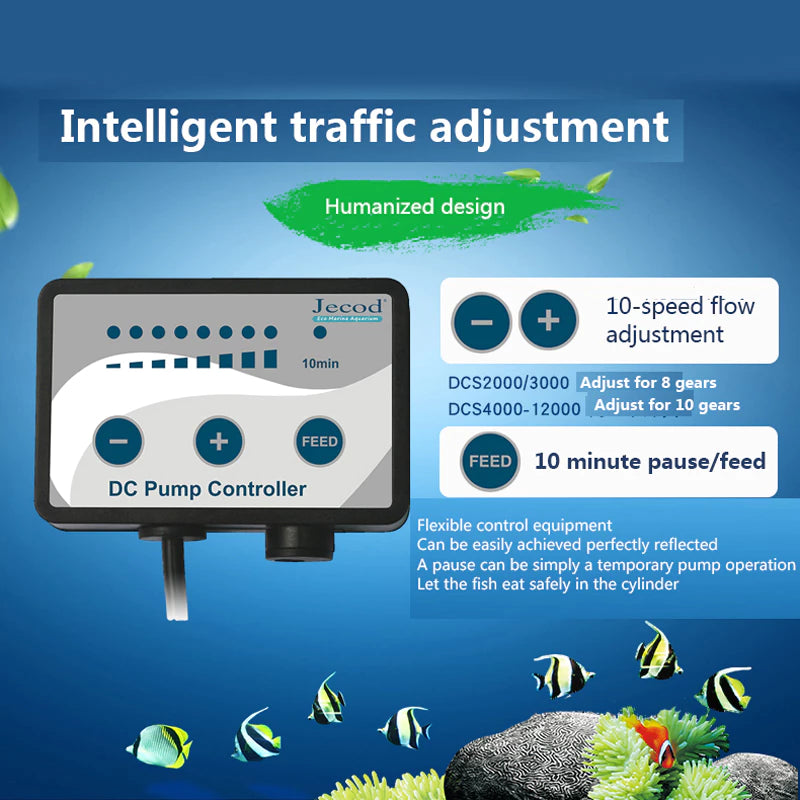

One-click Feed mode (10 Minutes stop)
Adjustable Flow rate, 8 Different Flow Rate Control
Wire/cable length, approx: 2 meters Pump

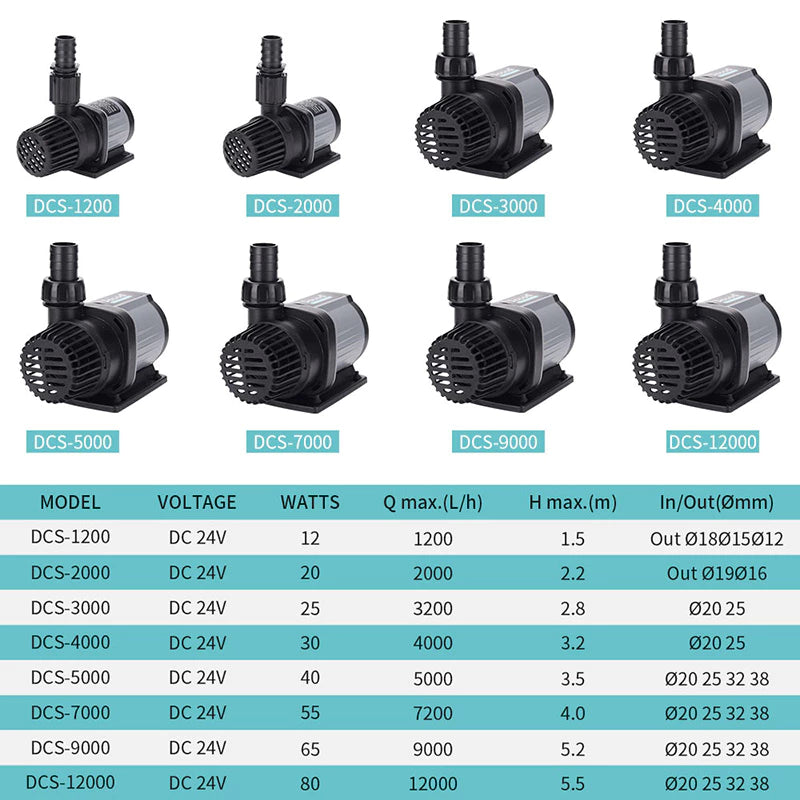

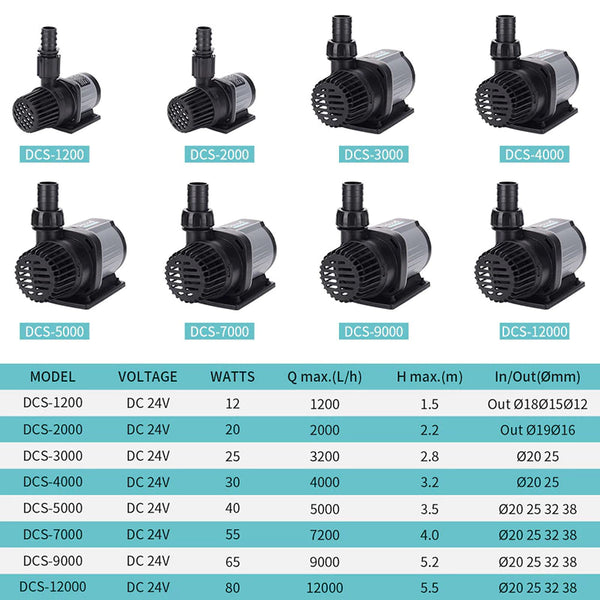

SPECIFICS EACH PUMP
Model: DCS1200
Pump size: 950mm*65mm*75mm
Wire Length: 1.5 M
Flow Rate: 1200 LPH
Max lift head: 1.5M
Water Inlet internal
Diameter: 20MM
Water Outlet external
Diameter: 14mm/18mm/20mm
Input Voltage: 110-240V 50/60HZ
Output Voltage: DC 12/24V
Watts: 12W
IP Rate: IPX8
Model # Jebao DCS2000
Output Voltage: DC 24V
Input Voltage: 100-240V 50/60HZ
Water Outlet external
Diameter: 15MM
Water Inlet internal Diameter: 25MM
Watts: 20W
Max lift head: 2.2 M
Flow Rate: 2000 LPH
Wire Length: 1.5 M
Pump size: 100x65x95mm
IP Rating: IPX8
Model: Jebao DCS3000
Pump size approx: 135x80x110mm
Wire Length: 1.5 M
Flow Rate: 3000 LPH
Max lift head: 2.8 M
Water Inlet Internal Diameter: 30mm
Water Outlet external Diameter: 15mm /22mm /26mm (1''inch=2.54CM =254MM)
Input Voltage: 110-240V 50/60HZ
Output Voltage: DC 12/24V
Watts: 25W
IP Rating: IPX8
Model: Jecod DCS4000
Flow Rate: 4000 LPH
Max lift head: 3.2 M
Input Voltage: 110-240V 50/60HZ
Output Voltage: DC 24V
Watts: 30W
IP Rating: IPX8
G.W.:1.9KG
Model: Jecod DCS5000
Flow Rate: 5000 LPH
Max lift head: 3.5M
Input Voltage: 110-240V 50/60HZ
Output Voltage: DC 24V
Watts: 40W
IP Rating: IPX8
G.W.: around 2.5KG
Model: Jecod DCS7000
Flow Rate: 7000 LPH
Max lift head: 4.0 M
Input Voltage: 110-240V 50/60HZ
Output Voltage: DC 24V
Watts: 55W
IP Rating: IPX8
G.W.: around 3.5KG
Model: Jecod DCS9000
Flow Rate: 9000 LPH
Max lift head: 4.0 M
Input Voltage: 110-240V 50/60HZ
Output Voltage: DC 24V
Watts: 65W
IP Rating: IPX8
G.W.: around 4KG
Model: Jecod DCS12000
Flow Rate: 12000 LPH
Max lift head: 5.5 M
Input Voltage: 110-240V 50/60HZ
Output Voltage: DC 24V
Watts: 80W
IP Rating: IPX8
G.W.: around 4.50 KG

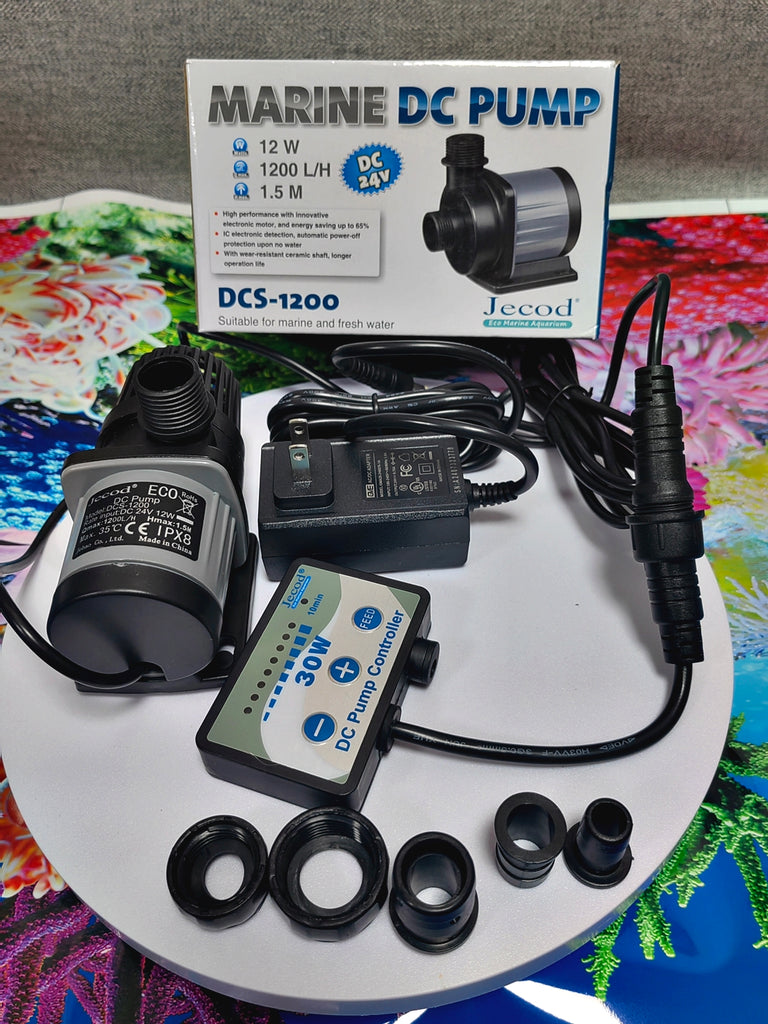

What is in the package:
1x complete set Jebao Jecord DCS1200/DCS2000/DCS3000 /DCS5000/DCS7000/DCS9000 /DCS12000 water pump
